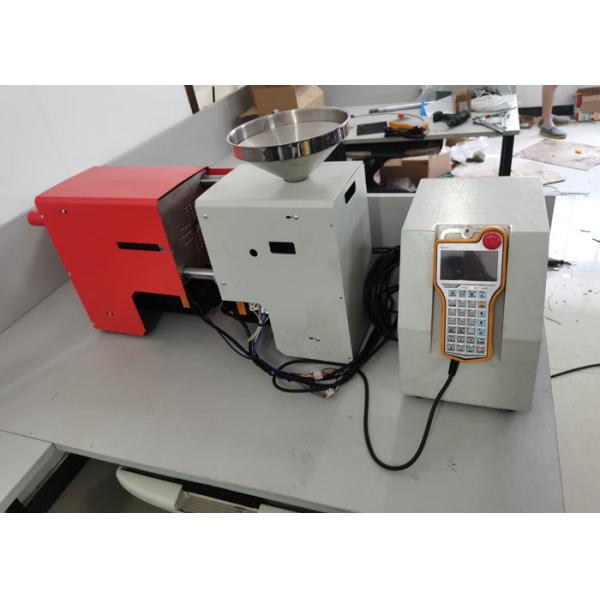

Micro Desktop 2mm Nozzle Auto Injection Molding Machine

    Buy cheap Micro Desktop 2mm Nozzle Auto Injection Molding Machine from wholesalers

    Buy cheap Micro Desktop 2mm Nozzle Auto Injection Molding Machine from wholesalers
    • Buy cheap Micro Desktop 2mm Nozzle Auto Injection Molding Machine from wholesalers

    Micro Desktop 2mm Nozzle Auto Injection Molding Machine

    Ask Lasest Price
    Brand Name : HAIJIA
    Model Number : Desktop 01
    Certification : CE,ISO9001
    Price : USD6000
    Payment Terms : L/C, T/T, Western Union, D/P
    Supply Ability : 20 sets per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Micro Desktop 2mm Nozzle Auto Injection Molding Machine


    China micro injection molding machine screw diameter 16mm

    HJF series injection molding machines are developed by Haijiang Company on the basis of a collection of the advantages assimilated from all world famous brand machines with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and thus the design quality of products is secured. The company adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision full automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Its present products such as HJK and KJF series and widely applied in the electronic, automobile and civil industries.


    High efficiency: 3.5s shaping cycle

    Traditional hydraulic press:

    Shot speed: 160~200mm/s

    Molding cycle :7~10 /s


    HaijiangMini:

    Max shot speed: 500mm/s

    Molding cycle 3.5 /s


    SPECIFICATIONHJKMINI-8T
    VOLTAGE SUPPLY220V
    POWER COMSUMPTION1 KW
    NOZZLE SIZE3mm
    SCREW DIAMETER16
    COOLING METHODWater cooling(or 220V mold temperature controller)
    MOLD INSTALLATION SIZE200*130*150(L*W*H)
    PLASTIC RAW MATERIALPP,PE,PA6,PS,PEI,PMMA,PVC,ABS etc
    PRODUCT WEIGHT20g
    MACHINE DIMENSIONS900*210*350(L*W*H)
    MACHINE WEIGHT100KG
    CLAMPING FORCE10T
    MOLD OPENING DISTANCE70mm
    EJECTION DISTANCE1-30mm
    TEMPERATURE RANGE0-500℃
    MONITORTOUCH SCREEN
    CONTROL SYSTEMPLC
    TRANSMISSIONCHAIN (or Timing belt pulley)
    SPACE BETWEEN TIE-BARS130mm*130mm
    SHELLOPTIONAL
    AUXILIARY MACHINES(optional)Auto loader,hopper dryer,mold temperature controller

    Any questions, welcome to contact us, we ill be always help you and support you.
    • May I know how soon I can get the machine after I transfer the deposit?
      Re:Usually, if the quantity is less than 5 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
    • How long the product warranty period?
      Re:The product warranty period is 12 months.
    • How long have you engaged in this industry?
      Re:We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
    • What kinds of Processing equipment you have?
      Re:CNC laser cutting equipment, CNC plasma cutting equipment, CNC flame cutting equipment, numerical control sheet metal processing equipment, 500 tons of hydraulic press,bending machine etc.
